Induction heating is a method of providing fast & consistent heating for manufacturing applications which involved bonding or changing properties of metlal for electrically conducting materials.
Toda's advanced design concepts warrant most engineering components to be heated to either from different shapes or attain specific grain structures.

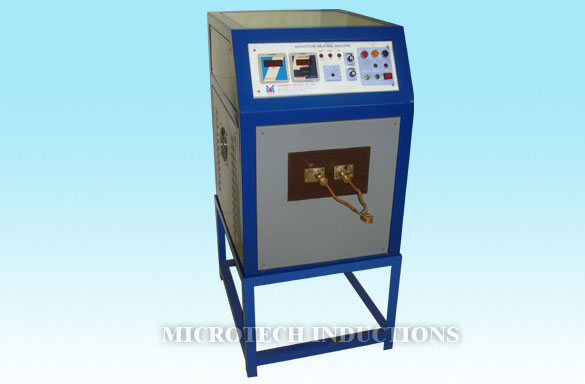

Microtech's range of induction heating systems are offered for custom built applications with suitable coils, materials handling solutions with complete automation.

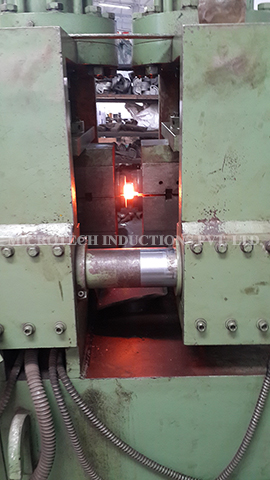

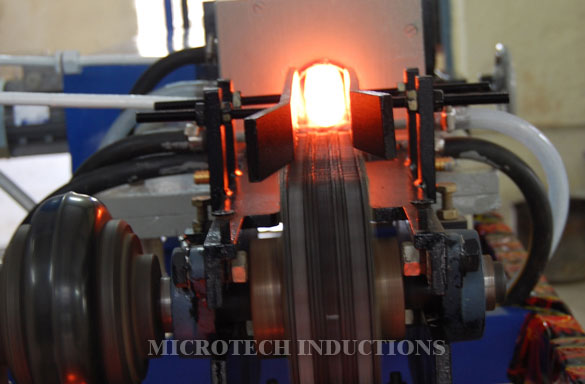

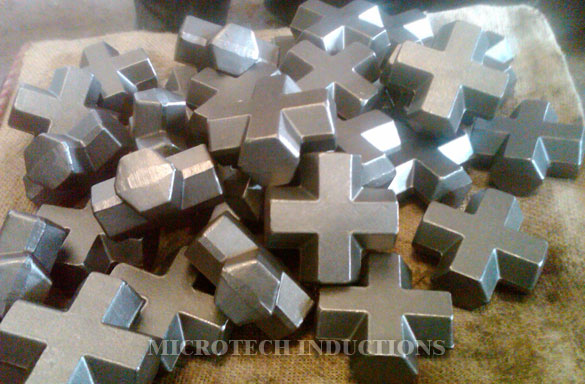

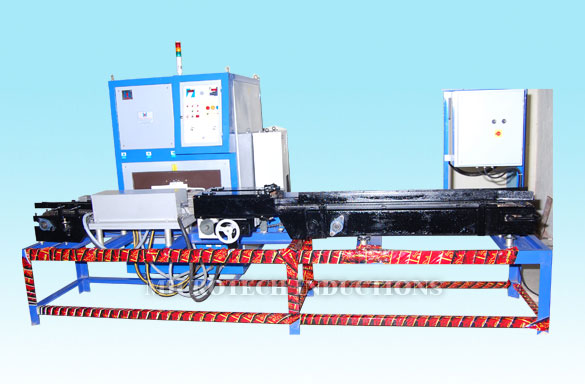

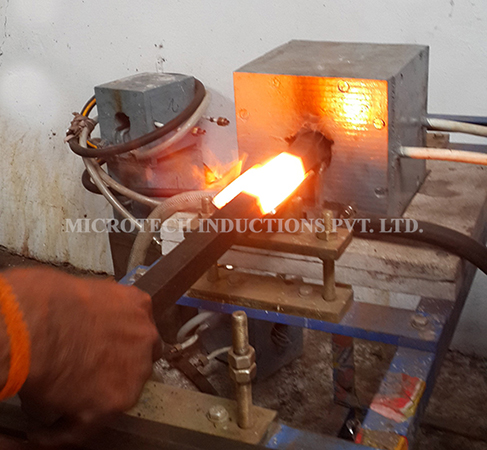

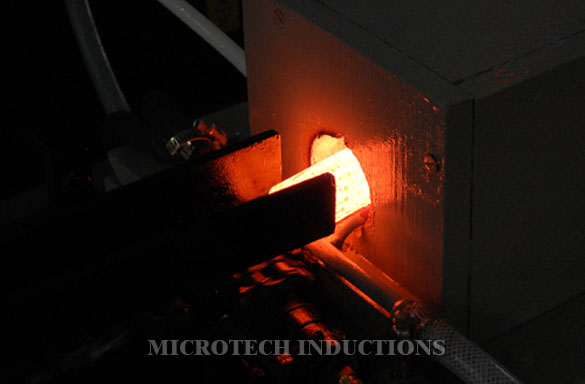

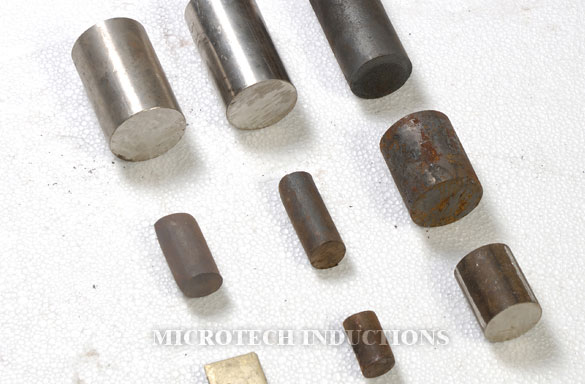

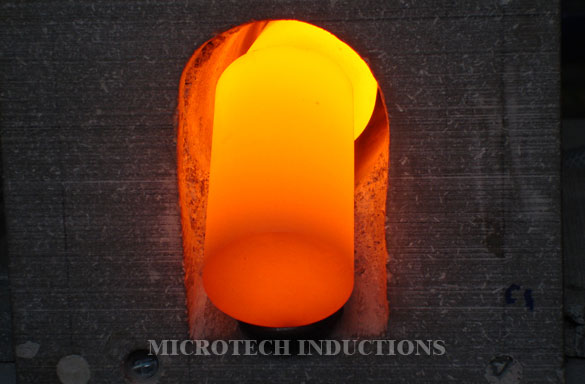

- Billet heating for forging

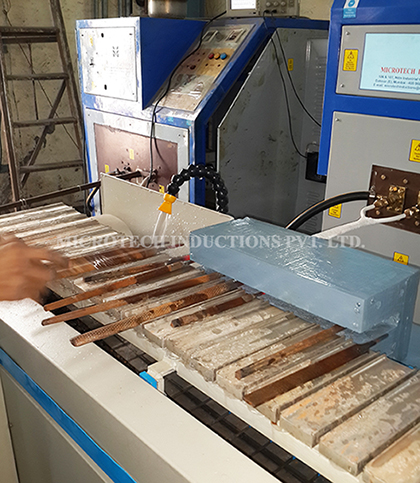

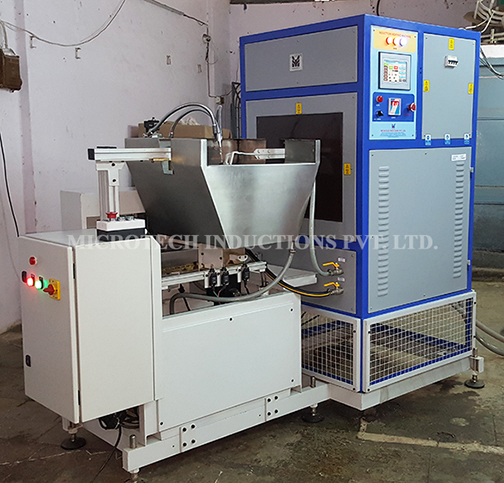

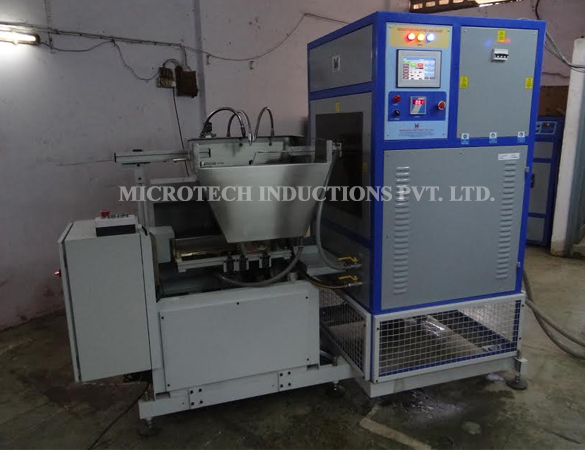

- Surface hardening of tools
- Hardening of gear, auto parts, bolts cylinder bore and Crank shaft

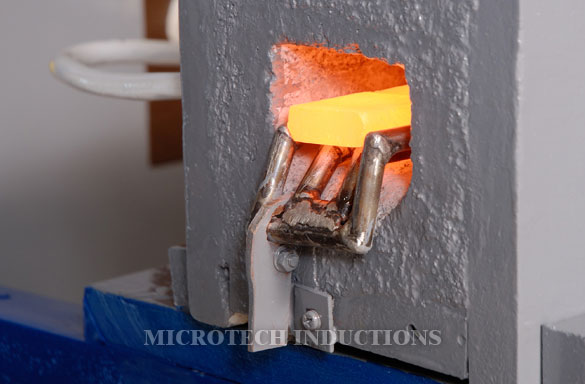

- Bar end heating

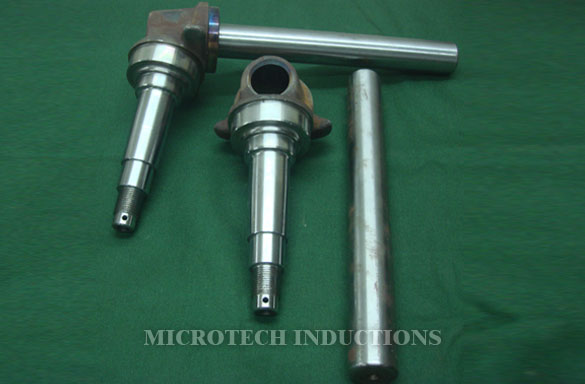

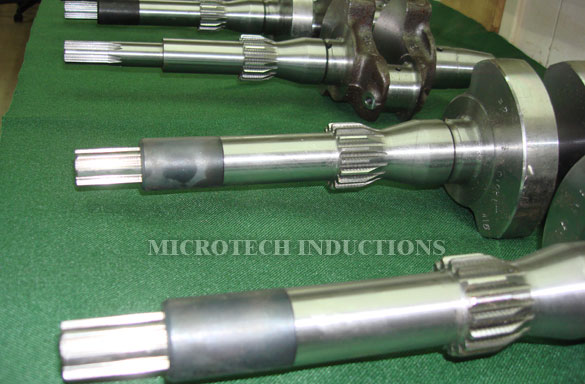

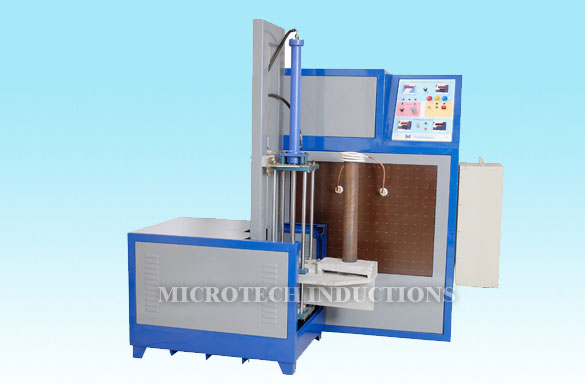

- Shrink Fitting

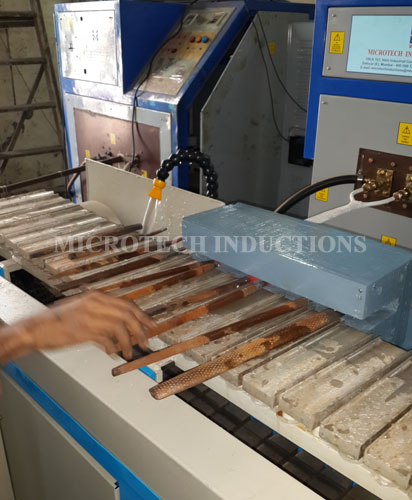

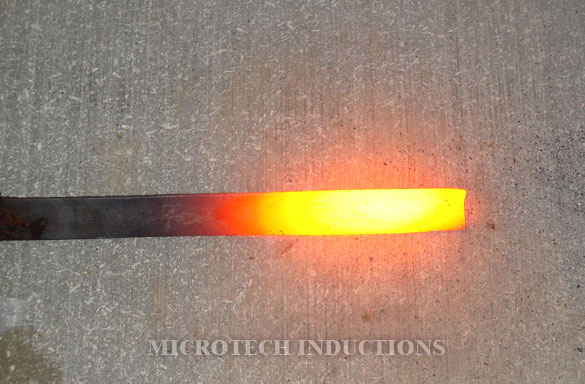

- Tang forging of files

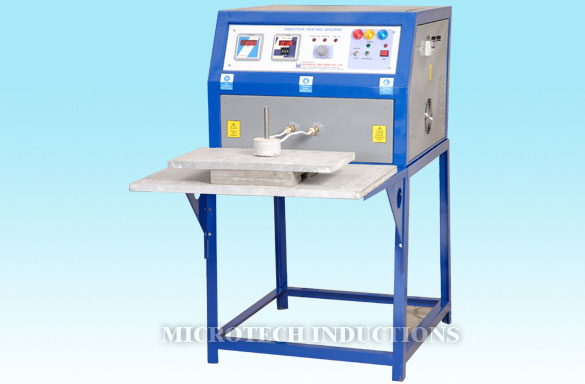

- Diamond dresser manufacturing
- Tube bending
- Gattering of Vacuum tubes
- Sintering of copper powder
- Heating of graphite susceptor for MOCVD crystal growth.

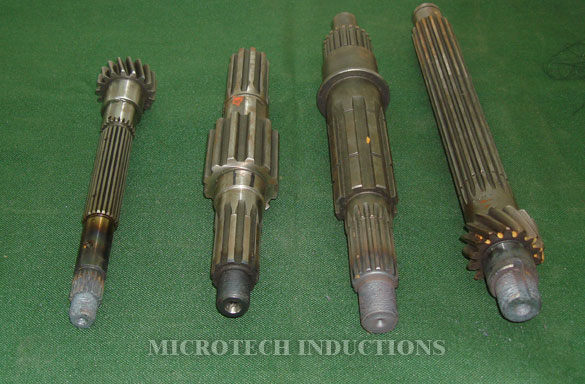

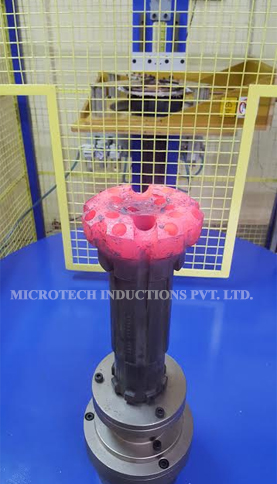

 Selective Heating |
||||

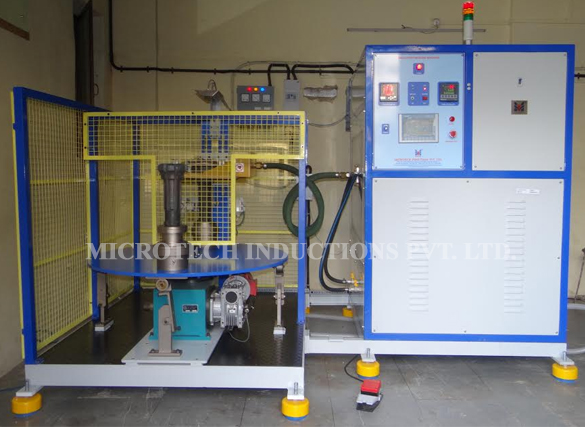

| CAM operated rotary indexer for precise & positive location |
||||
| Spinning job hold ensures uniform heating |
||||
| Hydraulic mechanism for handling jobs |
||||
| Highest system efficiency |
||||
| Highly adaptable for automation |
||||
| Eco-friendly due to noiseless and flameless operation |
||||
| No statutory approvals required |
||||
| Lesser risk involved compared to conventional methods |
||||
| Application Specific |
||||
| Auto or manual mode operation |
||||
| Improved power factor |
||||
| Tropicalised design |
||||
| Compact size |
| POWER RANGE | 1-5KW | 05-15KW. | 15-50KW | 50 -200KW |
| FREQUENCY RANGE | 5-600kHz | 01-400 kHz | 01-30kHz | 01 – 30kHz |
| ADAPTATION TO CHANGE LOAD CHARECTERISTICS | YES | YES | YES | YES |
| POWER CONTROL | MANUAL | AUTO | AUTO | AUTO |
| LOAD SENSED SELF TUNING | YES | YES | YES | YES |
| SIZE (mm) | W-225 B-500 H-430 |
W-530 B-640 H-1110 |
W-620 B-725 H-1370 |
W-1000 B-1090 H-1675 |
| INPUT POWER RANGE | SINGLE PHASE 230V/50Hz. |
THREE PHASE 230V/50Hz |
THREE PHASE 440V/50Hz |
THREE PHASE 440V/50Hz |
In our Endeavour to make better products, Microtech Induction Pvt. Ltd. reserves the right to change any specifications at any moment and without prior notice, to the models (including programming) and their accessories.
