Induction Shrink Fitting is a process where a union is formed using the phenomenon of expansion during the heating of the material and contraction during the cooling of material. Induction Shrink Fitting is useful in forming the mechanical assemblies and delicate parts where mechanical pressure cannot be applied. Residual deformation and stress reduction, fast and repeatable process using the flameless technique, easy operating features and state of the art are the main advantages of Microtech’s Induction Shrink Fitting Machines.
Also union / mechanical assemblies formed by Induction Shrink Fitting can also be dis-assembled by selective heating of the components. Microtech make Induction Shrink Fitting helps to get a uniform heating with energy saving features
- Shrink fitting of gears on shaft.
- Shrink fitting of sleeves on shaft.
- Shrink fitting of stator in outer enclosure.

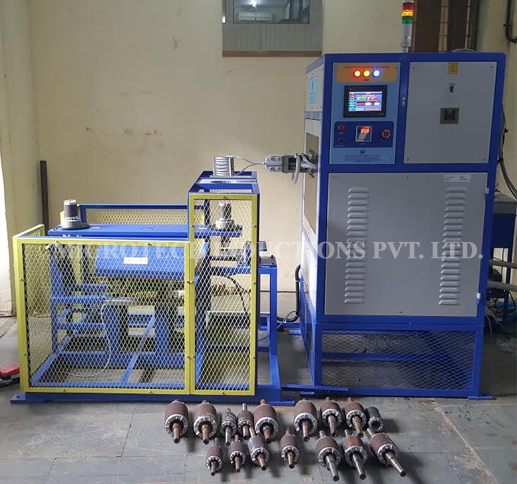

- Shrink fitting of rotor shaft to rotor.
- Removal and re-fitting of a gas turbine impeller
- Assembly of high precision roller bearings
- Shrink fitting of 2- stroke crank shafts for ship engines.
| POWER RANGE | 1-5KW | 05-15KW. | 15-50KW | 50 -200KW |
| FREQUENCY RANGE | 15-400kHz | 15-100 kHz | 15-30 kHz | 15 – 30 kHz |
| ADAPTATION TO CHANGE LOAD CHARECTERISTICS | YES | YES | YES | YES |
| POWER CONTROL | AUTO | AUTO | AUTO | AUTO |
| LOAD SENSED SELF TUNING | YES | YES | YES | YES |
| SIZE (mm) | W-170 B-495 H-350 |
W-530 B-640 H-1110 |
W-620 B-725 H-1370 |
W-1000 B-1090 H-1675 |
| INPUT POWER RANGE | SINGLE PHASE 230V/50Hz. |
THREE PHASE 440V/50Hz |
THREE PHASE 440V/50Hz |
THREE PHASE 440V/50Hz |
