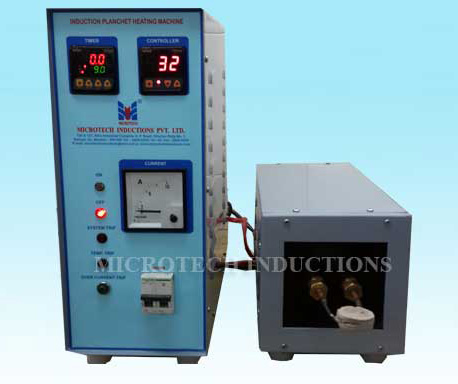

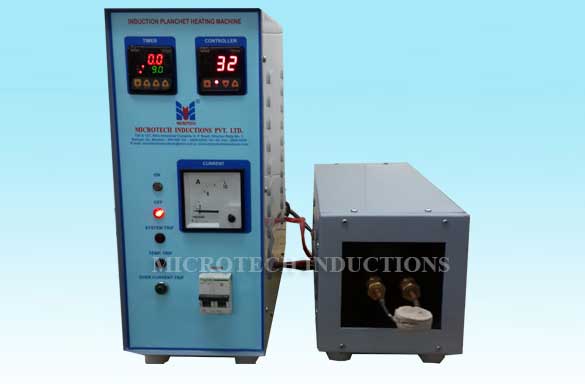

Planchet Heating Machines are used for heating of small planchet which are having preloaded samples. During the Heating, volatile components will be evaporated, nonvolatile components can be used for the further analysis.
- Planchet Heating
 Uniform center to periphery planchet heating within 15 sec. |
||||
| Consistency in heating through Induction Heating. |
||||
| Faster temperature rise. |
||||
| Simplicity in operation. |
||||
| Process is more than 85% efficient. |
||||
| Induction power sources will be 95% efficient. |
||||
| Input current will not exceed 3 Ampere. |
||||
| Digital timer for heating cycle adjustment. |
||||
| Foot switch operation is also possible. |
||||
| Induction generator & Inductor is separated with 2 meter extension cable. |
||||
| Tropicalised design |
| Sr. no. | Item | Specification |
| 1. | Type of heating unit | Induction planchet heating unit |
| 2. | Type of heating | Induction Heating |
| 3. | operation | Instant planchet heating |
| 4. | Dimensions: induction generator | H: 14" W:6.75" D:19.5" |
| 5. | Dimensions: transformer box | H: 8.25" W:7.5" D:8.25" |
| 6. | Operation temperature | 900°C |
| 7. | Operating cycle | Repeated operation of instant planchet heating up to 900°C within 15 sec. |
| 8. | charge | One planchet heating at a time in open air |
| 9. | Loading arrangement | One stainless steel 304L disc (Planchet), Diameter 25.5±0.2mm, Thickness 0.3±0.02mm Planchet size base of heating unit in open air |
| 10. | Input | 230V AC, 50Hz, 3 Amp |
| 11. | Output | 600 Watt, 100-200 kHz |
