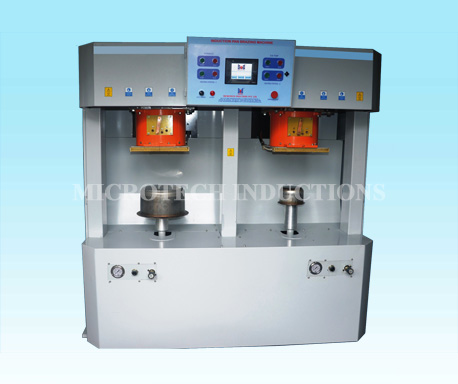

High frequency Induction Brazing Machines for sandwich cladding /capsule cladding of SS utensils
- Basic cladding- Al+ SS, Cu +SS
- Sandwich cladding –SS +Al +SS
- Capsule cladding-Ss +Al +SS
- High frequency inverter for higher efficiency(less running cost).
- Higher productivity.
- Better & uniform cladding.
- Ensures fast & heating uniform brazing.
- Consistent homogeneous production quality.
- Modular constructions (single/double/three/ four station)
- Two station with indexing table.
- Touch screen PLC based operator friendly M.M.I.
- Sturdy mechanical system.
- Fully integrated machine with built in DM water cooling system.
- Near unity power factor 0.94 to 0.95
- State of the art design.
- Tropicalised design.
- Power capacity available : 50/100/150/200 kw
- Frequency : 80 to 125 Khz
- Vessel bottom size : 90 / 250, 150/350
- Aluminium plate thickness 0.5mm to 5mm
- Utensil thickness : 0.4mm to 0.6mm
- Indexing table: 3mandrel on each station (two variant)
a)
- First station for loading.
- Second station for heating/cooling.
- Third station for unloading
b)
- First station for loading /unloading.
- Second station for heating
- Third station for cooling
